AI Functions: Human Detection
Alarm Action: FTP Photo,telefon Alarm,Email Photo
Audio: Built-in microphone,Audio recording
Audio Input: Built-in Microphone
Audio Output: 1CH BNC
Brand Name: ANNKE
Color: white, black
Color Night Vision: Yes
Connectivity: RJ45
High Definition: 5.0 Megapixels
High-concerned chemical: None
IP Rating: IP67
IR Distance(m): 30m
Installation: Ceiling,Wall Mounted
Lens (mm): 4mm, 2.8mm
Lens Quantity: Single Lens
Megapixels: 8MP
Model Number: I51DS/I91DL
Power Mode: Mains Electricity
Power Supply: With Poe
Power Supply(V): DC12V
Rechargeable Battery: NONE
Scene: Indoor and outdoor
Sensor: CMOS
Shell Material: Plastic
Special Features: Waterproof / Weatherproof
Special Features 1: ip camera
Special Features 2: security protection
Special Features 3: annke security camera
Special Features 4: poe camera
Special Features 5: home audio video
Special Features 6: annke 4k poe camera
Special Features 7: IP66 ip camera
Special Features 8: 5MP Dome security protection
Style: Turret Camera
Supported Mobile Systems: Windows Mobile,Android,iOS
Supported Operating Systems: No
TF Card: None
Video Compression Format: H.264,H.265
Whether or Not 50Vac or 75Vdc or Higher Power Supply: No
Zoom: NONE
Zoom type: None
pixel: 5MP 8MP

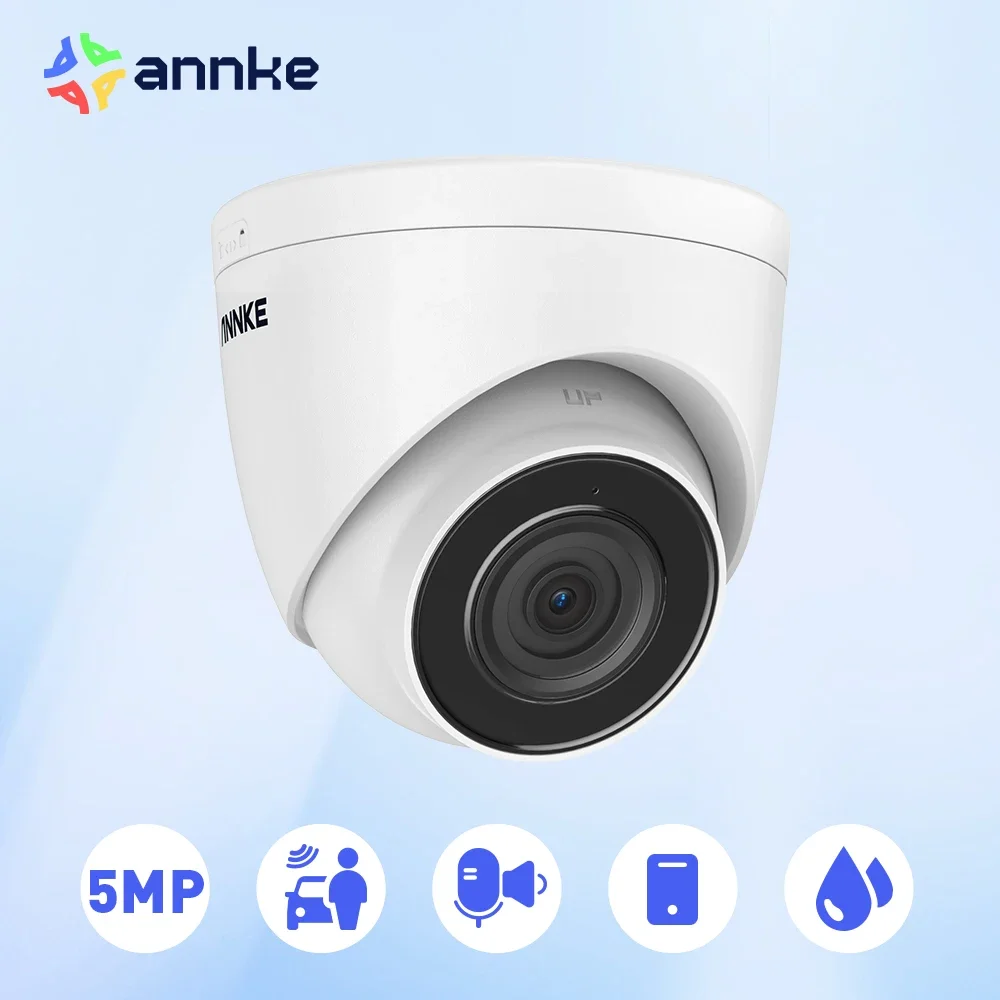

3K 5MP Main Features:
★ 3K 5MP IR Network Camera with 16:9 image scale
★ 2.8mm/4MM lens brings everything back to life
★ Efficient H.265+ compression technology
★ Motion detection 2.0 with human & Vehicle Detection
★ Up to 100ft night vision with EXIR 2.0
★ Clear day and night vision with 3D DNR and 120DB WDR
★ Built-in Microphone, record with audio
★ Built-in microSD/SDHC/SDXC Slot, up to 256 GB
★ IP67 Dust and Waterproof Rating
★ Support PoE &DC12V
| IP Camera | ||
| Camera | Image Sensor | 1/3″ Progressive Scan CMOS |
| Max resolution | 3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display | |
| Main Stream | 50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720) 60 Hz:20 fps (3072*1728), 24 fps ( 1920 X 1080, 1280 X 720) |
|
| Substream | 50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360) 60 Hz: 24 fps (1280 X 720,640 X 480, 640 X 360) |
|
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
|
| Video Bitrate | 32 Kbps – 6 Mbps | |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC | |
| Audio Input | Built-in Microphone, record with audio | |
| Lens | 4 mm/2.8mm | |
| Min. Illumination | Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR | |
| Angle of View | 4MM: Horizontal FOV 76°, vertical FOV 41°, diagonal FOV 90°
2.8MM: Horizontal FOV 99°, vertical FOV 55°, diagonal FOV 116° |
|
| Number of Infrared LEDs | 2 pcs | |
| Night Vision Distance | Up to 100 ft/30 m | |
| Motion detection 2.0 | Supoort, include Human & Vehicle detection | |
| Image Enhancement | BLC, HLC, 3D DNR | |
| Wide Dynamic Range | 120 dB WDR | |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP | |
| ONVIF | Support 4MM Lens | |
| API | 2.8MM Lens :Open Network Video Interface | |
| Region of Interest (ROI) | 1 fixed region for main stream | |
| Privacy Mask | 4 programmable polygon privacy masks | |
| General Function | Mirror,rotate,password protection,video tampering alarm, remote access | |
| Ethernet | 1 RJ45 10 M/100 M self-adaptive Ethernet port | |
| General | Housing | Metal & Plastic |
| Color | White | |
| Storage | Built-in microSD/SDHC/SDXC Slot, up to 256 GB | |
| Hardware Reset | Yes | |
| Operating Power | DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W | |
| Operating Temperature | -22 °F – 140 °F/-30 °C – 60 °C | |
| Indoor/Outdoor Use | Indoor/Outdoor | |
| Interface Protection | IP67, TVS 2000 V Lightning Protection, Surge Protection and Voltage Transient Protection | |
| Dimension (L X W X H) | Ø 110 × 100.8 mm (Ø 4.3″ × 4.0″) | |
| Weight | 0.6 lb./270 g | |
8MP Key features:
★ 4K smart dual light network camera
★ 4mm@F1.6 lens brings everything back to life
★ Efficient H.265+ compression technology
★ Motion detection 2.0 with human & Vehicle Detection
★ Clear day and night vision with 3D DNR and 120DB WDR
★ Built-in microphone for real-time audio security
★ Support on-board storage up to 512 GB (SD card slot)
★ IP67 Dust and Waterproof Rating
★ Support PoE &DC12V
| IP Camera | ||
| Camera | Image Sensor | 1/2.4″ Progressive Scan CMOS |
| Max resolution | 3840*2160(8MP) | |
| Main Stream | 50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
|
| Substream | 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) |
|
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
|
| Video Bitrate | 32 Kbps – 16 Mbps | |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC | |
| Audio Input | Built-in Microphone, record with audio | |
| Lens | 4 mm | |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR | |
| Angle of View | Horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° | |
| Supplement Light Type | Smart Dual-Light, IR, White Light | |
| Supplement Light Range | Up to 30 m | |
| Motion detection 2.0 | Supoort, include Human & Vehicle detection | |
| Image Enhancement | BLC, HLC, 3D DNR | |
| Wide Dynamic Range | 120 dB WDR | |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP | |
| API | Open Network Video Interface Version (Profile S, Profile T, Profile G) | |
| Region of Interest (ROI) | 1 fixed region for main stream | |
| Privacy Mask | 4 programmable polygon privacy masks | |
| General Function | Rotate mode, mirror, password protection, remote access | |
| Ethernet | 1 RJ45 10 M/100 M self-adaptive Ethernet port | |
| General | Housing | Metal & Plastic |
| Color | White & Black | |
| Storage | Built-in microSD/SDHC/SDXC Slot, up to 512 GB | |
| Hardware Reset | Yes | |
| Operating Power | DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W | |
| Operating Temperature | -22 °F – 140 °F/-30 °C – 60 °C | |
| Indoor/Outdoor Use | Indoor/Outdoor | |
| Interface Protection | IP67 | |
| Dimension (L X W X H) | 170.8 mm × 66 mm × 69.1 mm (6.7″ × 2.6″ × 2.7″) | |
| Weight | 0.6 lb./285 g | |
How to choose a lens? 2.8MM or 4MM?
1. Perspective.
*The 2.8mm camera has a wide viewing angle and is suitable for installation indoors or in small areas.
*The 4mm camera angle of view is narrow, suitable for installation outdoors or in large areas
2. Imaging effect.
*The 2.8mm camera has a clear image at close range.
*The 4mm camera has a clear image at a long distance.
| Sensor Size | 5MP Cameras 2.8Lens, 8MP Camera 4MM Lens |
|---|---|
| Ships From | United States |
